WCS 2.0.1

WCS 2.0.1提供如下操作:

GetCapabitities：返回服务级元数据，它是对服务信息内容和要求参数的一种描述。
DescribeCoverage：支持用户从特定WCS服务器获取一个或多个覆盖的详细的描述文档。
GetCoverage：可根据查询要求返回一个包含或者引用被请求的覆盖数据的响应文档。

参考文档:

GetCapabilities

请求

请求参数

参数名称	是否必填	描述
service	是	服务名:WCS
request	是	请求名称:GetCapabilities
version	否	版本:2.0.1
acceptVersions	否	请求的 WCS 服务的版本号序列，各个版本间用逗号隔开，并把最希望返回的版本的服务写在最前面。
sections	否	请求返回的服务端元信息的部分（Sections），多个部分之间用逗号隔开。
updateSequence	否	服务元信息文档的版本号，因此号码是一个增量，每次修改会增加一个值。如果此参数缺省，或参数值不是服务端支持的版本号，则返回最新版本的服务元信息。

请求示例

http

{{server}}/igs/rest/services/:serviceName/WCSServer?version=2.0.1&request=GetCapabilities&service=wcs

响应

展开查看

xml

<ows:Capabilities
    xmlns:wcs="http://www.opengis.net/wcs/2.0"
    xmlns:ows="http://www.opengis.net/ows/2.0"
    xmlns:gml="http://www.opengis.net/gml/3.2"
    xmlns:gmlcov="http://www.opengis.net/gmlcov/1.0"
    xmlns:xlink="http://www.w3.org/1999/xlink"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:int="http://www.opengis.net/WCS_service-extension_interpolation/1.0"
    xmlns:crs="http://www.opengis.net/wcs/crs/1.0" version="2.0.1" xsi:schemaLocation="http://www.opengis.net/ows/2.0 http://localhost:8089/gis/rest/ogc/schemas/wcs/2.0/wcsAll.xsd">
    <ows:ServiceIdentification>
        <ows:Title>Web Coverage Service</ows:Title>
        <ows:Abstract>IGServer OGC WCS</ows:Abstract>
        <ows:Keywords>
            <ows:Keyword>wcs</ows:Keyword>
        </ows:Keywords>
        <ows:ServiceType>OGC WCS</ows:ServiceType>
        <ows:ServiceTypeVersion>2.0.1</ows:ServiceTypeVersion>
        <ows:ServiceTypeVersion>1.1.1</ows:ServiceTypeVersion>
        <ows:ServiceTypeVersion>1.0.0</ows:ServiceTypeVersion>
        <ows:Profile>http://www.opengis.net/spec/NS_WCS/2.0/conf/core</ows:Profile>
        <ows:Profile>http://www.opengis.net/spec/WCS_protocol-binding_get-kvp/1.0.1</ows:Profile>
        <ows:Profile>http://www.opengis.net/spec/WCS_protocol-binding_post-xml/1.0</ows:Profile>
        <ows:Profile>http://www.opengis.net/spec/WCS_service-extension_crs/1.0/conf/crs-gridded-coverage</ows:Profile>
        <ows:Profile>http://www.opengis.net/spec/WCS_geotiff-coverages/1.0/conf/geotiff-coverage</ows:Profile>
        <ows:Profile>http://www.opengis.net/spec/GMLCOV/1.0/conf/gml-coverage</ows:Profile>
        <ows:Profile>http://www.opengis.net/spec/GMLCOV/1.0/conf/special-format</ows:Profile>
        <ows:Profile>http://www.opengis.net/spec/GMLCOV/1.0/conf/multipart</ows:Profile>
        <ows:Profile>http://www.opengis.net/spec/WCS_service-extension_scaling/1.0/conf/scaling</ows:Profile>
        <ows:Profile>http://www.opengis.net/spec/WCS_service-extension_crs/1.0/conf/crs</ows:Profile>
        <ows:Profile>http://www.opengis.net/spec/WCS_service-extension_interpolation/1.0/conf/interpolation</ows:Profile>
        <ows:Profile>http://www.opengis.net/spec/WCS_service-extension_interpolation/1.0/conf/interpolation-per-axis</ows:Profile>
        <ows:Profile>http://www.opengis.net/spec/WCS_service-extension_interpolation/1.0/conf/nearest-neighbor</ows:Profile>
        <ows:Profile>http://www.opengis.net/spec/WCS_service-extension_interpolation/1.0/conf/linear</ows:Profile>
        <ows:Profile>http://www.opengis.net/spec/WCS_service-extension_interpolation/1.0/conf/cubic</ows:Profile>
        <ows:Profile>http://www.opengis.net/spec/WCS_service-extension_range-subsetting/1.0/conf/record-subsetting</ows:Profile>
        <ows:Fees>NONE</ows:Fees>
        <ows:AccessConstraints>NONE</ows:AccessConstraints>
    </ows:ServiceIdentification>
    <ows:ServiceProvider>
        <ows:ProviderName>Hubei</ows:ProviderName>
        <ows:ProviderSite xlink:href="http://www.mapgis.com.cn"/>
        <ows:ServiceContact>
            <ows:IndividualName>吴信才</ows:IndividualName>
            <ows:PositionName>集团董事长</ows:PositionName>
            <ows:ContactInfo>
                <ows:Phone>
                    <ows:Voice>027-87785588</ows:Voice>
                    <ows:Facsimile>027-87785588</ows:Facsimile>
                </ows:Phone>
                <ows:Address>
                    <ows:City>Wuhan</ows:City>
                    <ows:AdministrativeArea>China</ows:AdministrativeArea>
                    <ows:PostalCode>430074</ows:PostalCode>
                    <ows:Country>China</ows:Country>
                </ows:Address>
                <ows:OnlineResource xlink:href="http://www.mapgis.com.cn"/>
            </ows:ContactInfo>
        </ows:ServiceContact>
    </ows:ServiceProvider>
    <ows:OperationsMetadata>
        <ows:Operations name="GetCapabilities">
            <ows:DCP>
                <ows:HTTP>
                    <ows:Get xlink:Href="http://localhost:8089/gis/rest/services/world/WCSServer?"/>
                </ows:HTTP>
            </ows:DCP>
            <ows:DCP>
                <ows:HTTP>
                    <ows:Post xlink:Href="http://localhost:8089/gis/rest/services/world/WCSServer?"/>
                </ows:HTTP>
            </ows:DCP>
        </ows:Operations>
        <ows:Operations name="DescribeCoverage">
            <ows:DCP>
                <ows:HTTP>
                    <ows:Get xlink:Href="http://localhost:8089/gis/rest/services/world/WCSServer?"/>
                </ows:HTTP>
            </ows:DCP>
            <ows:DCP>
                <ows:HTTP>
                    <ows:Post xlink:Href="http://localhost:8089/gis/rest/services/world/WCSServer?"/>
                </ows:HTTP>
            </ows:DCP>
        </ows:Operations>
        <ows:Operations name="GetCoverage">
            <ows:DCP>
                <ows:HTTP>
                    <ows:Get xlink:Href="http://localhost:8089/gis/rest/services/world/WCSServer?"/>
                </ows:HTTP>
            </ows:DCP>
            <ows:DCP>
                <ows:HTTP>
                    <ows:Post xlink:Href="http://localhost:8089/gis/rest/services/world/WCSServer?"/>
                </ows:HTTP>
            </ows:DCP>
        </ows:Operations>
        <ows:Constraint name="PostEncoding">
            <ows:AllowedValues>
                <ows:Value>XML</ows:Value>
            </ows:AllowedValues>
        </ows:Constraint>
    </ows:OperationsMetadata>
    <wcs:ServiceMetadata>
        <wcs:formatSupported>application/gml+xml</wcs:formatSupported>
        <wcs:formatSupported>image/jpeg</wcs:formatSupported>
        <wcs:formatSupported>image/png</wcs:formatSupported>
        <wcs:formatSupported>image/tiff</wcs:formatSupported>
        <wcs:formatSupported>text/plain</wcs:formatSupported>
        <wcs:Extension>
            <crs:CrsMetadata>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4494</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4495</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4492</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4493</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4490</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4491</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4498</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4499</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4496</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4497</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21480</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21481</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21482</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21483</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2390</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4214</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21477</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21478</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21475</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21476</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21479</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21473</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21474</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2382</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2383</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2380</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2381</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4326</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2388</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2389</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2386</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2387</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2384</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2385</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4548</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4549</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2371</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2372</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4550</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2370</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2379</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2377</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2378</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2375</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4553</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2376</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4554</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2373</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4551</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2374</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4552</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4539</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2359</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4537</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4538</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2360</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2361</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2368</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4546</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2369</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4547</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2366</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4544</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2367</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4545</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2364</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4542</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2365</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4543</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2362</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4540</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2363</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4541</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21422</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21423</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21420</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21421</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4528</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4529</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2348</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4526</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2349</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4527</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2350</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2357</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4535</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21419</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2358</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4536</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2355</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4533</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21417</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2356</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4534</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21418</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2353</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4531</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2354</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4532</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2351</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2352</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4530</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4519</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2339</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4517</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4518</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2337</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4515</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2338</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4516</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2346</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4524</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2347</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4525</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2344</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4522</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2345</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4523</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2342</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4520</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2343</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4521</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2340</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2341</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4508</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4509</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2328</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4506</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2329</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4507</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4504</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2327</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4505</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2335</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4513</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2336</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4514</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2333</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4511</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2334</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4512</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2331</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2332</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4510</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2330</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2438</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21415</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2439</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21416</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2436</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21413</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2437</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/21414</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32649</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32648</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32652</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32651</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32653</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4502</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4503</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4500</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4501</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2441</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2442</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32650</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/900913</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2440</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2429</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2427</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2428</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2425</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2426</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32643</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32645</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32644</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32647</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/32646</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2434</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2435</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2432</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2433</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/4610</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2430</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2431</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2418</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2419</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2416</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2417</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2414</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2415</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2423</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2424</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2421</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2422</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2420</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2409</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2407</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2408</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2405</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/3857</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2406</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2403</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2404</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2412</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2413</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2410</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2411</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2401</crs:crsSupported>
                <crs:crsSupported>http://www.opengis.net/def/crs/EPSG/0/2402</crs:crsSupported>
            </crs:CrsMetadata>
            <int:interpolationSupported>http://www.opengis.net/def/interpolation/OGC/1/nearest-neighbor</int:interpolationSupported>
            <int:interpolationSupported>http://www.opengis.net/def/interpolation/OGC/1/linear</int:interpolationSupported>
            <int:interpolationSupported>http://www.opengis.net/def/interpolation/OGC/1/cubic</int:interpolationSupported>
        </wcs:Extension>
    </wcs:ServiceMetadata>
    <wcs:Contents>
        <wcs:CoverageSummary>
            <ows:Title>world</ows:Title>
            <ows:Abstract>world</ows:Abstract>
            <ows:Keywords/>
            <wcs:CoverageId>world__world</wcs:CoverageId>
            <wcs:CoverageSubtype>GridCoverage</wcs:CoverageSubtype>
            <ows:WGS84BoundingBox>
                <ows:LowerCorner>-180.0 -89.99999999999997</ows:LowerCorner>
                <ows:UpperCorner>180.0 89.99999999999997</ows:UpperCorner>
            </ows:WGS84BoundingBox>
            <ows:BoundingBox crs="http://www.opengis.net/def/crs/EPSG/0/EPSG:4326">
                <ows:LowerCorner>-180.0 -89.99999999999997</ows:LowerCorner>
                <ows:UpperCorner>180.0 89.99999999999997</ows:UpperCorner>
            </ows:BoundingBox>
        </wcs:CoverageSummary>
    </wcs:Contents>
</ows:Capabilities>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343

DescribeCoverage

请求

请求参数

参数名称	是否必填	描述
service	是	服务名:WCS
request	是	请求名称:DescribeCoverage
version	否	版本:2.0.1
coverageId	是	指定所要请求的图层,从getCapabilities返回的元数据信息获取

请求示例

http

{{server}}/igs/rest/services/:serviceName/WCSServer?version=2.0.1&request=DescribeCoverage&service=wcs&coverageId=world__world

响应

响应示例:

展开查看

xml

<wcs:CoverageDescriptions
    xmlns:wcs="http://www.opengis.net/wcs/2.0"
    xmlns:ows="http://www.opengis.net/ows/2.0"
    xmlns:gml="http://www.opengis.net/gml/3.2"
    xmlns:gmlcov="http://www.opengis.net/gmlcov/1.0"
    xmlns:xlink="http://www.w3.org/1999/xlink"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:swe="http://www.opengis.net/swe/2.0"
    xmlns:wcsgs="http://www.geoserver.org/wcsgs/2.0" xsi:schemaLocation="http://www.opengis.net/wcs/2.0 http://localhost:8089/gis/rest/ogc/schemas/wcs/2.0/wcsDescribeCoverage.xsd http://localhost:8089/gis/rest/ogc/schemas/wcs/2.0/wcsAll.xsd">
    <wcs:CoverageDescription gml:id="world__world">
        <gml:description>Generated from GeoTIFF</gml:description>
        <gml:name>world</gml:name>
        <gml:boundedBy>
            <gml:Envelope sysName="http://www.opengis.net/def/crs/EPSG/0/4326" axisLabels="Lat Long" uomLabels="Degree Degree" srsDimension="2">
                <gml:lowerCorner>-89.99999999999997 -180.0</gml:lowerCorner>
                <gml:upperCorner>89.99999999999997 180.0</gml:upperCorner>
            </gml:Envelope>
        </gml:boundedBy>
        <wcs:CoverageId>world__world</wcs:CoverageId>
        <gml:domainSet>
            <gml:Grid gml:id="grid_world__world" dimension="2">
                <gml:limits>
                    <gml:GridEnvelope>
                        <gml:low>0 0</gml:low>
                        <gml:high>2046 1022</gml:high>
                    </gml:GridEnvelope>
                </gml:limits>
                <gml:axisLabels>Lat Long</gml:axisLabels>
                <gml:origin>
                    <gml:Point gml:id="grid_origin_world__world" sysName="http://www.opengis.net/def/crs/EPSG/0/4326">
                        <gml:pos>89.99999999999997 -180.0</gml:pos>
                    </gml:Point>
                    <gml:offsetVector sysName="http://www.opengis.net/def/crs/EPSG/0/4326">0.0 0.17586712261846604</gml:offsetVector>
                    <gml:offsetVector sysName="http://www.opengis.net/def/crs/EPSG/0/4326">-0.17595307917888559 0.0</gml:offsetVector>
                </gml:origin>
            </gml:Grid>
        </gml:domainSet>
        <gmlcov:rangeType>
            <swe:DataRecord>
                <swe:field name="band1">
                    <swe:Quantity>
                        <swe:description>band1</swe:description>
                        <swe:nilValues/>
                        <swe:uom code="W.m-2.Sr-1"/>
                        <swe:constraint>
                            <swe:AllowedValues>
                                <swe:interval>0.0 255.0</swe:interval>
                            </swe:AllowedValues>
                        </swe:constraint>
                    </swe:Quantity>
                </swe:field>
                <swe:field name="band2">
                    <swe:Quantity>
                        <swe:description>band2</swe:description>
                        <swe:nilValues/>
                        <swe:uom code="W.m-2.Sr-1"/>
                        <swe:constraint>
                            <swe:AllowedValues>
                                <swe:interval>0.0 255.0</swe:interval>
                            </swe:AllowedValues>
                        </swe:constraint>
                    </swe:Quantity>
                </swe:field>
                <swe:field name="band3">
                    <swe:Quantity>
                        <swe:description>band3</swe:description>
                        <swe:nilValues/>
                        <swe:uom code="W.m-2.Sr-1"/>
                        <swe:constraint>
                            <swe:AllowedValues>
                                <swe:interval>0.0 255.0</swe:interval>
                            </swe:AllowedValues>
                        </swe:constraint>
                    </swe:Quantity>
                </swe:field>
            </swe:DataRecord>
        </gmlcov:rangeType>
        <wcs:ServiceParameters>
            <wcs:CoverageSubtype>GridCoverage</wcs:CoverageSubtype>
            <wcs:nativeFormat>image/tiff</wcs:nativeFormat>
        </wcs:ServiceParameters>
    </wcs:CoverageDescription>
</wcs:CoverageDescriptions>

GetCoverage

请求

请求参数

参数名称	是否必填	描述
service	是	服务名示例：WCS
request	是	请求名示例：GetCoverage
version	否	版本示例：2.0.1
coverageId	是	指定所要请求的图层，从GetCapabilities返回的XML信息的CoverageId节点中获取。
mediaType	否	同时需要XML和图像输出时，应该设置为' multipart/related '(这是该参数目前唯一可能的值)，IGServer暂不支持该参数。
format	否	返回的格式，从GetCapabilities返回的XML信息的formatSupported节点中获取。示例：format=image/tiff
subset	否	允许使用给定的范围来获取数据，参数包含轴类型(宽高)和给定轴的范围信息(宽高的范围区间)，每个轴唯一。示例：subset=Long(0,10)&subset=Lat(0,10)，Long表示宽，Lat表示高。
subsettingCrs	否	范围参照系，传入的subset范围信息必须是该参照系下的范围。示例：subsettingCrs=EPSG:4326
outputCrs	否	输出参照系，数据的参照系通过此参数设置，如果数据本身参照系与输出参照系不同，会返回投影后的数据。示例：outputCrs=EPSG:4326
scaleFactor	否	使用这个参数(一个正浮点数)可以调整输出图像的大小，图像的宽高等比例放大或缩小示例：scaleFactor=1.5
scaleAxes	否	指定轴类型(宽高)进行放大或缩小。示例：scaleAxes=Long(2)&scaleAxes=Lat(3)，Long表示宽，Lat表示高。
scaleSize	否	指定轴类型(宽高)的像素大小。示例：scaleSize=Long(100)&scaleSize=Lat(100)，Long表示宽，Lat表示高。
interpolation	否	重新缩放图像的插值方法。从GetCapabilities返回的XML信息的interpolationSupported节点中获取。示例：interpolation=http://www.opengis.net/def/interpolation/OGC/1/nearest-neighbor
rangeSubset	否	选择波段,从DescribeCoverage返回的XML信息的field节点中获取。示例:rangeSubset=band1(单波段)或者rangeSubset=band3,band2,band1(多波段)
geotiff:comperssion	否	压缩方式。示例：geotiff:comperssion=Jepg或者LZW
geotiff:jpeg_quality	否	Jpeg压缩质量。示例：geotiff:jpeg_quality=100

请求示例

http

{{server}}/igs/rest/services/:serviceName/WCSServer?version=2.0.1&request=GetCoverage&service=wcs&coverageId=world__world&format=image/png

响应

结果根据传入的格式返回图片、tiff数据、text文本

示例

1.默认请求(返回全图)

{{server}}/igs/rest/services/:serviceName/WCSServer?version=2.0.1&request=GetCoverage&service=wcs&coverageId=world__world&format=image/png

2.根据范围请求

{{server}}/igs/rest/services/:serviceName/WCSServer?version=2.0.1&request=GetCoverage&service=wcs&coverageId=world__world&format=image/png&subset=Long(-10,10)&subset=Lat(-10,10)

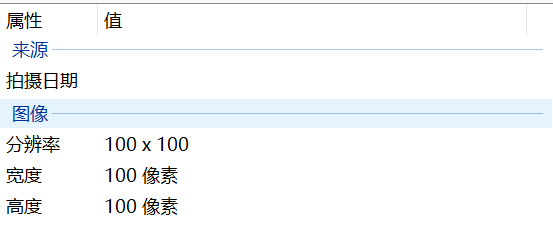

3.指定宽高

{{server}}/igs/rest/services/:serviceName/WCSServer?version=2.0.1&request=GetCoverage&service=wcs&coverageId=world__world&format=image/png&subset=Long(-10,10)&subset=Lat(-10,10)&scaleSize=Long(100)&scaleSize=Lat(100)

4.缩放返回的图片

{{server}}/igs/rest/services/:serviceName/WCSServer?version=2.0.1&request=GetCoverage&service=wcs&coverageId=world__world&format=image/png&subset=Long(-10,10)&subset=Lat(-10,10)&scaleFactor=2

WCS 2.0.1 ​

GetCapabilities ​

请求 ​

响应 ​

DescribeCoverage ​

请求 ​

响应 ​

GetCoverage ​

请求 ​

响应 ​

示例 ​

WCS 2.0.1

GetCapabilities

请求

响应

DescribeCoverage

请求

响应

GetCoverage

请求

响应

示例
